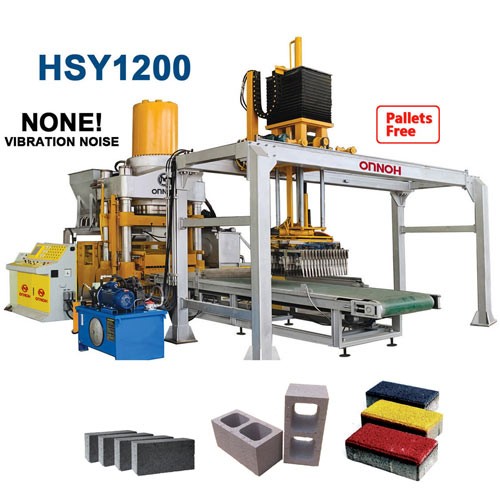

HSY1200 double hydraulic press block machine

ONNOH 1200 tons double hydraulic press molding machineis based on hydraulic, forming fast, energy saving, product structure uniform strength, no pollution, low noise, no need for irrigation foundation, less investment, quick effect, suitable for the production of colored road bricks, road bricks, etc. (Maximum molding specification 500 x 500 mm). It is an environmental protection and economic hydraulic brick making machine for the interests of the country and the people.

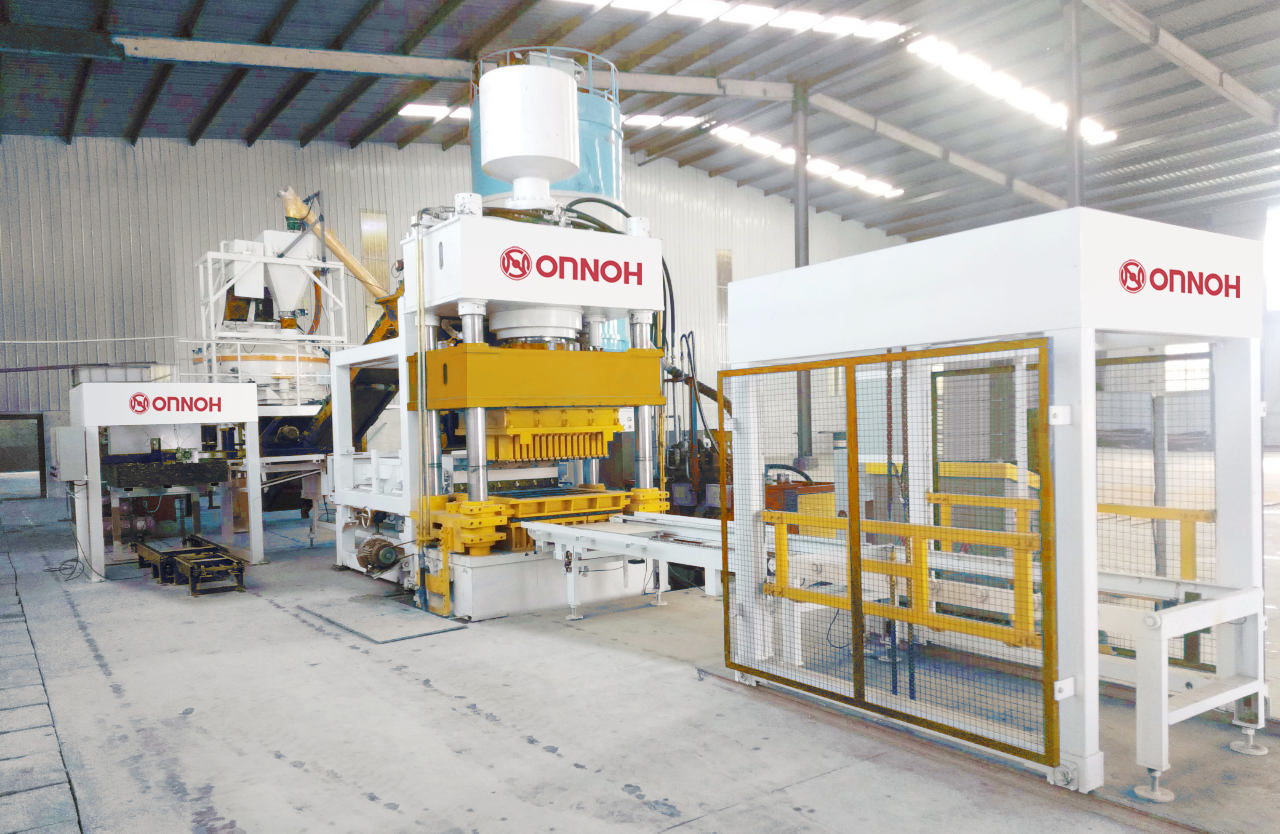

HSY1200 double Hydraulic Press Block Machine

concrete <a href=https://www.onnoh.com/block-making-machine.html target='_blank'>block making machine</a> production line

Main   Technical Parameter

Model   No.

HSY1200

Production   capacity:

51   pcs/mold (Standard solid brick: 238x113x48mm)

27   pcs/mold  (hollow block: 240x115x90mm)

Forming   Area

1250*850mm

Forming   period

Solid   brick: 15-20s   hollow block: 20-25s

Max   pressure

12000KN  1200 T

Max   pressure

2000KN  200 T

Main   power

75   KW

Pump   max pressure

31.5   Mpa

Machine   size

8200x4500x4000 mm

Machine   weight

26000 kg 26 T

Cylinder   diameter

Φ800mm inner

Control   system

Siemens   etc.
