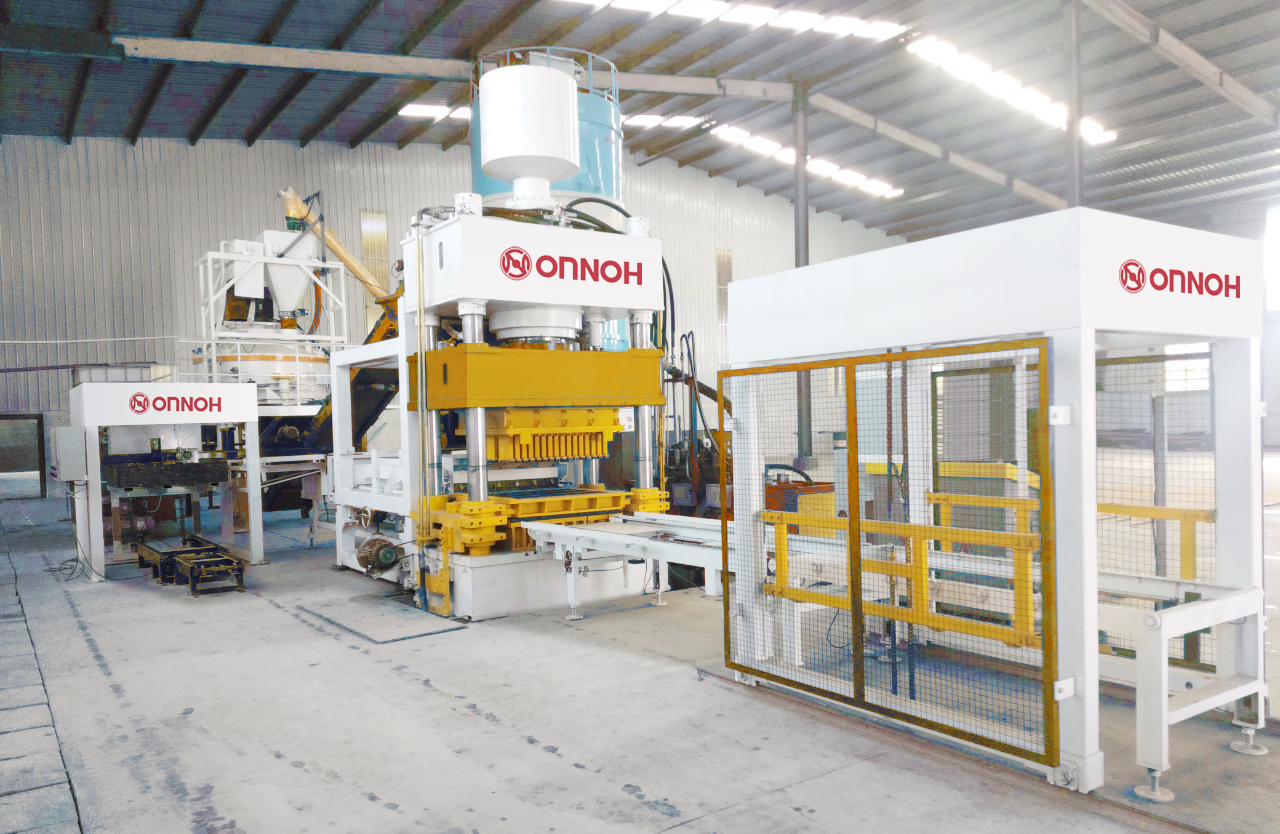

HSY900 double hydraulic press block machine

ONNOH 300 tons road stone hydraulic molding machineis based on hydraulic, forming fast, energy saving, product structure uniform strength, no pollution, low noise, no need for irrigation foundation, less investment, quick effect, suitable for the production of colored road bricks, road bricks, etc. (Maximum molding specification 500 x 500 mm). It is an environmental protection and economic hydraulic brick making machine for the interests of the country and the people.

HSY900 double Hydraulic Press Block Machine,pallets free block machine


Main   Technical Parameter

Model   No.

HSY900

Production   capacity

36   pcs/mold (Standard solid brick: 238x113x48mm)

21   pcs/mold  (hollow block: 240x115x90mm)

Forming   Area

950*850mm

Forming   period

Solid   brick: 15-20s   hollow block: 20-25s

Max   pressure

8000KN  800 T

Max   pressure

1000KN  100 T

Main   power

59   KW

Pump   max pressure

31.5   Mpa

Machine   size

8200x4200x4000 mm

Machine   weight

22000 kg 22 T

Cylinder   diameter

Φ630mm inner

Control   system

Siemens   etc.
