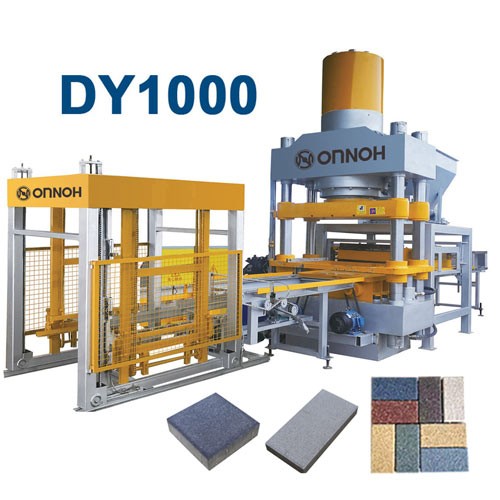

DY1000 color block making machine

ONNOH DY1000 Automatic hydraulic pressure brick machine is a professional cement brick machine upgraded and improved on the basis of hydraulic brick machine. It can realize the automation and intelligence of hydraulic brick machine by relying on hydraulic power source and simple touch screen operation.

WhatsApp:8615394434019

DY1000 hydraulic press color block making machine uses sand, industrial waste slag, slag and slag as raw materials of slope protection brick machine, adds a small amount of cement, and is pressed and formed by pavement brick machine. It can also make different types of curb stone, color brick, curb stone brick, lawn brick, permeable brick and special-shaped brick by changing molds. It is suitable for roads and highways, square

Main Technical Parameter
Model No.	DY-1000
Production capacity	48pcs/mold (Standard solid brick: 238x113x48mm)
Production capacity	44 pcs/mold (color paver: 200x100x60mm)
Forming period	Solid brick: 15-20s color brick: 20-25s
Max pressure	10000KN （1000 T）
Main power	55 KW
Pump max pressure	48 Mpa
Machine size	8500x4500x4200 mm
Pallet size	1280x1060x25 mm
Machine weight	25000 kg （25 T）
Mixing power	4.5 KW
Vibration power	2×5.5 KW
Hydraulic system	YUKEN Valve
Cylinder diameter	Φ800mm inner
Control system	Siemens etc.
