Low-Level Automatic Brick Palletzer

ONNOH Low-Level Automatic Brick Palletzer, Automatic Bricks Collecting Product Line

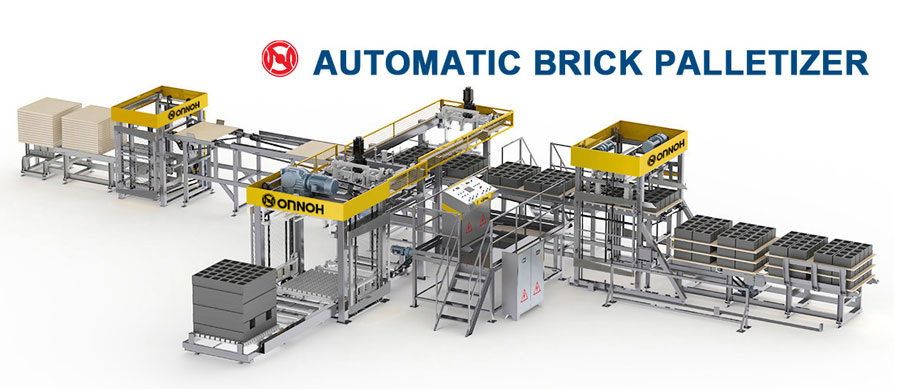

low-level automatic brick stacking machine

ONNOH Low-Level Automatic Brick Palletzer can separate the bricks of different specifications produced by different types of brick machines, arrange the blocks and finally arrange them into 1200 (mm) square stacks for stacking (standard solid bricks can be stacked up to 12 times at a time) Layer), can choose to wrap around the membrane after passing the brick. With the forklift holding clip, you can directly hold the pallet without the pallet, and the stacking height can be 3 stacks. The whole system adopts PLC + touch screen control, and only one person is required to operate it. The amount of bricks per hour is about 210 layers, which can greatly save labor and labor.

cement brick making machine

ONNOH Low-Level Automatic Brick Palletzer can separate the bricks of different specifications produced by different types of brick machines, arrange the blocks and finally arrange them into 1200 (mm) square stacks for stacking (standard solid bricks can be stacked up to 12 times at a time) Layer), can choose to wrap around the membrane after passing the brick. With the forklift holding clip, you can directly hold the pallet without the pallet, and the stacking height can be 3 stacks. The whole system adopts PLC + touch screen control, and only one person is required to operate it. The amount of bricks per hour is about 210 layers, which can greatly save labor and labor.

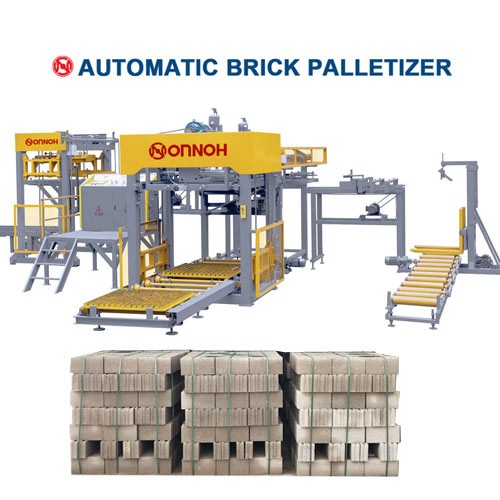

onnoh cement brick stacking machine

Technical parameters of Low-Level Automatic Brick Palletzer

Total power

29.5KW   (including 7.5KW air compressor) (actual operating power 14. 2KW)

Code brick   maximum size

1200mm long,   1200mm wide, 1450mm high

Palletizing   cycle

15 seconds   average period

Total Weight

11 tons

Brick range

Regular bricks   arranged in the same direction are tried, (outside of triangular bricks)

Applicable   pallet size

Model 4 to Model   15

 Automatic code brick output table:

Brick specifications

Pallet size specifications and output

Pallet size specifications and output

Pallet size specifications and output

Solid   brick

240x50x115

Conventional   layer: length 960xwidth 960, 76 pieces per layer, 52 pieces perforated layer;   15960 pieces per hour, 888 pieces per 12 layers

Regular   layer of length 1200xwidth 1200, 120 layers per layer, 96 perforated layers,   20160 blocks per hour, 1216 layers per stack


Color   brick

100x200*60

Regular   layer of length 800xwidth 800,
  32 per layer, 20 perforated layers, 6720 per hour, 692 per 22 layers



Regular   layer of length 1000-width 1000
  50 per layer, 35 perforated layers,
  10500 pieces per hour, 1085 pieces per 22 layers



Regular   layer of length 1200xwidth 1200, 120 pieces per layer, 96 pieces perforated   layer, 25200 pieces per hour, 1416 pieces per stack 22 layers

concrete   Block

390x190*190

Regular   layer of length 800xwidth 800, 8 layers per layer, 6 perforated layers, 1 680   per hour, 7 layers per stack of 54

Regular   layer of length 1200xwidth 1200,
  18 per layer, 12 perforated layers,
  3780 pieces per hour, 120 pieces per stack of 7 layers




With   brick

190x50x115

Regular   layer of length 950x width 950, 95 layers per layer, 65 perforated layers,   19950 blocks per hour, 1210 layers per stack

Regular   layer length 1140-width 1140
  132 per layer, 96 perforated layers,
  27720 pieces per hour, 1548 pieces per 12 layers

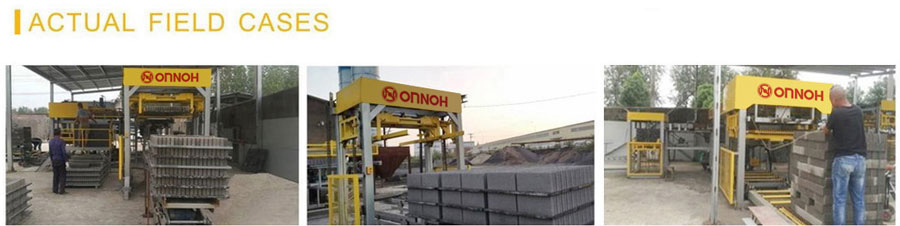

Automatic Brick Palletzer customer case

concrete block stacking
