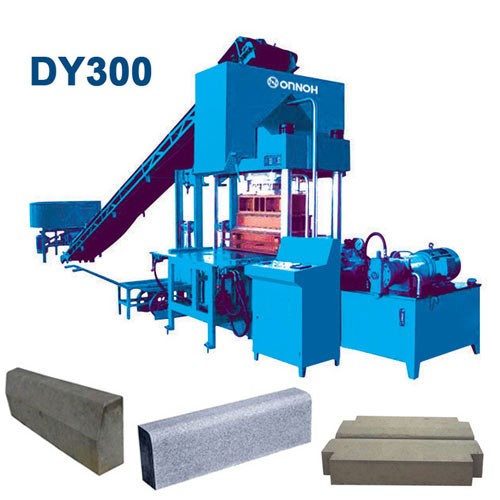

DY300 road stone hydraulic press molding machine

ONNOH 300 tons road stone hydraulic molding machineis based on hydraulic, forming fast, energy saving, product structure uniform strength, no pollution, low noise, no need for irrigation foundation, less investment, quick effect, suitable for the production of colored road bricks, road bricks, etc. (Maximum molding specification 500 x 500 mm). It is an environmental protection and economic hydraulic brick making machine for the interests of the country and the people.

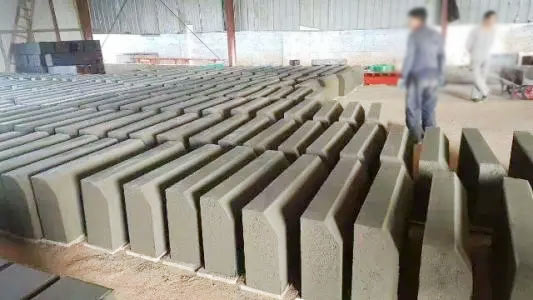

The roadside stone machine is made of sand, stone, industrial waste slag, slag, slag and so on, adding a small amount of cement. It is pressed and formed by the hydraulic power of the roadside stone machine. It can also make different types of roadside stone, roadside stone, roadside stone, lawn brick, slope protection brick, shaped brick and so on by changing the mold.


DY300 road stone hydraulic press molding machine is further optimized design on the basis of the double cylinder hydraulic machine, using three cylinders hydraulic, in a variety of performance has greater improvement: large pressure and uniform, solid and beautiful products, workbench area expansion, hydraulic speed up, improve work efficiency. By changing the mold, it can be used to produce cement machine brick, roadside brick and hollow brick and other building materials. The machine can produce 20 bricks per mold, or 1000 x 450 size of road edge bricks.

Main Technical Parameters

Max pressure

3000KN

Production/8hours

600~800pcs(Paving stone)

Pump pressure

31.5MPa

Pump displacement

63ml/r

Motor power

16.5KW/380V

Machine Size

8000*2900*2600(mm)
