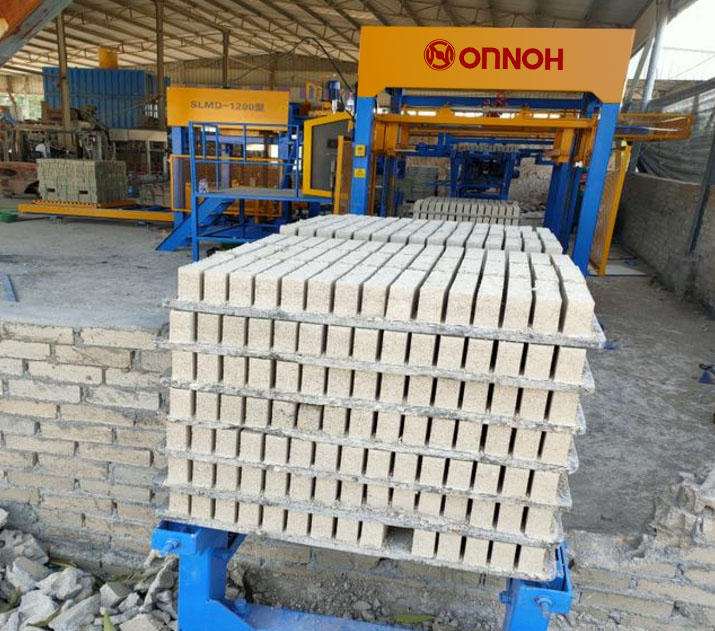

Full automatic cement brick stacking machine packing is completed automatically

Full automatic cement brick stacking machine Quanzhou onnoh mechanical automatic brick receiving and packing machine，The full-automatic brick harvester production line is applicable to the stacking of dry products of the production line. Generally, it is independently set near the product curing yard. For the local stacking of cured products, it can also be connected in the block production line to implement online stacking.

Onnoh automatic brick stacking machine can separate the blocks of different specifications produced by different models of brick machines, arrange the blocks into square stacks for stacking (the height of standard solid bricks can reach 12 layers at a time), and wrap the bricks with wrapping film. It can be directly carried to the site for stacking without pallet with forklift clamp, and the stacking height can be 3 stacks. The automatic brick coding machine only needs one person to operate. The daily brick quantity is about 3800 boards / shift. The labor cost can be greatly saved.

Main technical parameters of cement brick stacking machine:

1. Floor area of the whole set: ~ 19000 × 13000（mm）

2. Total weight: ～ 18000kg

3. Code brick specification: 1000-1200 (mm)

125 standard solid bricks for one layer

18 standard hollow bricks on one floor

4. Operating cycle: 16-18 seconds / layer

5. Total power: 34.15kw

6. Stacking size: 1400 (mm)
