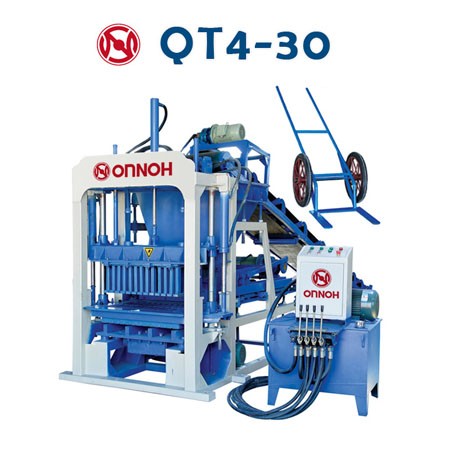

QT4-30 Manual Cement brick Machine

QT4-30 paving brick machine is the most popular cement brick machine in South Africa and some africa countries which meets the national standard of China. A 15 HP diesel engine hydraulic station is installed for the forming host, which has excellent performance, high efficiency and low energy consumption.

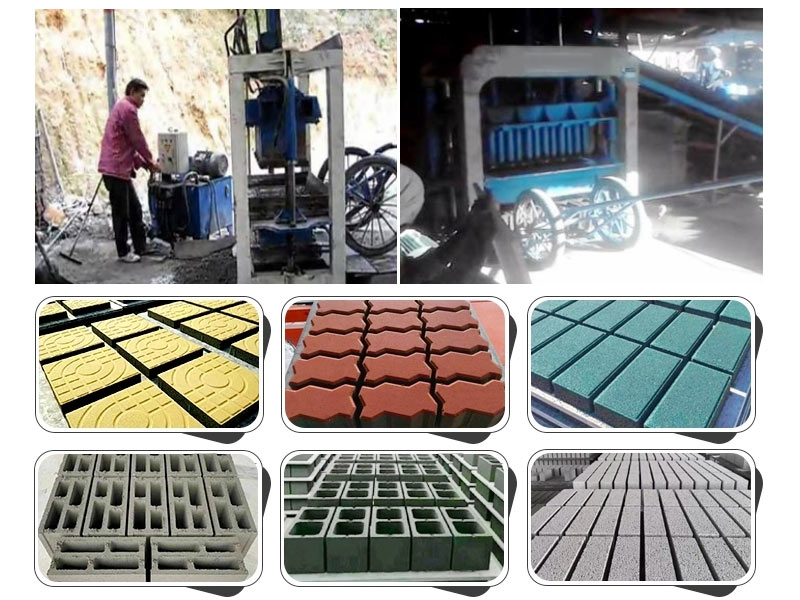

The machine can produce all kinds of hollow blocks, solid bricks and interlocking bricks. It is widely used in the construction of municipal engineering, architecture and garden sand road with high production efficiency.

WhatsApp:8615394434019

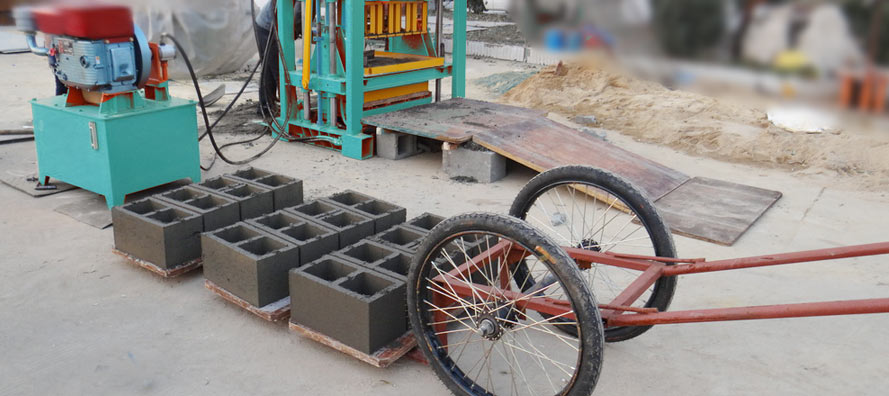

QT4-30 Manual Cement brick Machine manufacturing machine does not use any power and can be installed anywhere without power. It can produce all kinds of hollow bricks, solid bricks and interlocking bricks. It is widely used in municipal engineering, construction, garden sand road, and its productivity is very high. Qt4-30 paving brick machine South Africa

Theoretical workshop area: 50-100m2, about 3-4 people are required to complete all work. The office, curing area and stacking area are arranged according to your specific situation.

QT4-30 manual hollow block machineMain Technical Parameters

cycle time	30-35s	virbation type	hydraulic virbation
motor frequency	50HZ	total power	15.5KW
pallet size	85056020MM	gross weight	1500KG
rated pressure	8.5MPA	machine size	450016002200MM

Output of QT4-30 hollow block making machine :

Item	Size	Output per cycle	Output per hour

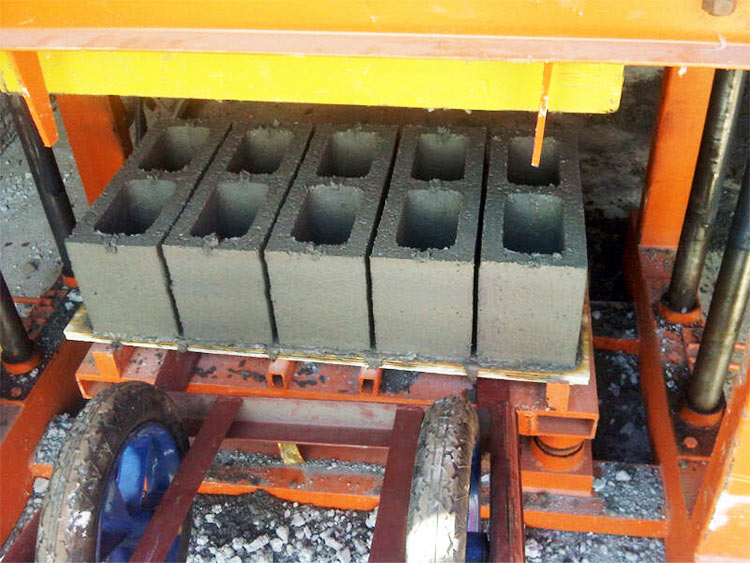

Hollow block	400200200mm	4 pcs	360-480 pcs
Hollow block	400150200mm	5 pcs	450-600 pcs
Porous block	24011590mm	9 pcs	810-1080 pcs
Solid brick	24011553mm	21 pcs	1890-2520 pcs
Interlock brick	20016060mm	8 pcs	720-960 pcs

Other information:

Area: plant area: 30-50 square meters, all plant area is 1000 square meters, the larger the better.
Workers: two or three.
Raw material ratio (depending on the actual situation): Cement 8% - 10%, sand 30% - 40%, stone 50% - 60%, about cement: Sand: Stone 1:4:5.
Weight of hollow block: (390 * 190 * 190): 17kg, (190 * 140 * 190): 13.5kg, (390 * 90 * 190): 10kg 5. Daily raw material consumption: 30-40 tons 6. Daily water consumption: 3% - 5% of the weight of raw materials.
