Interlocking Brick Machine

automatic hydraulic interlocking brick making machine is a full-automatic hydraulic brick making machine controlled by PLC, so the machine can be easily operated by only one person. It is applicable to the manufacture of clay brick, cement brick and interlocking brick.

whatsapp:8615394434019

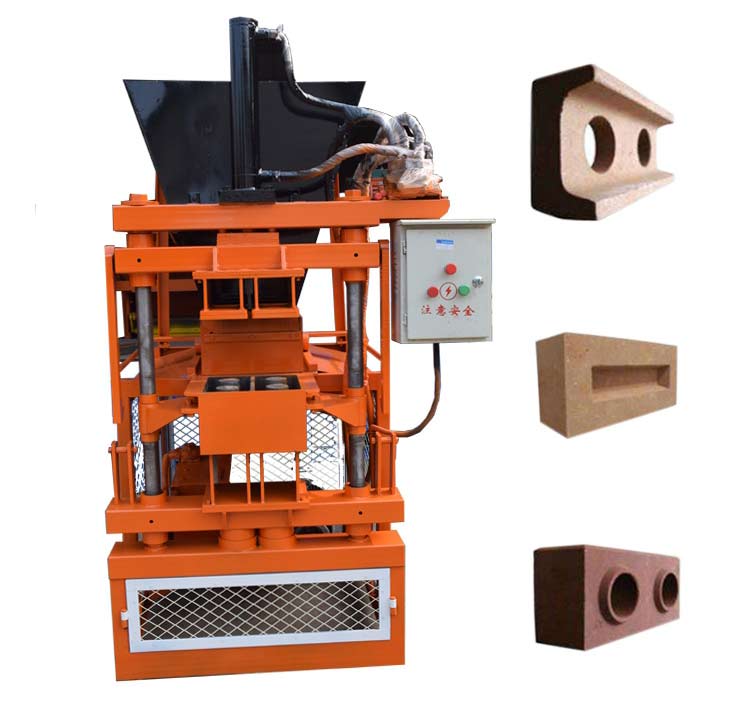

OYF 2-10 is a popular full-automatic hydraulic interlocking brick manufacturing machine of onnoh machinery company, which is suitable for the manufacturing of clay brick, cement brick and interlocking brick.

OYF 2-10 interlocking <a href=https://www.onnoh.com/block-making-machine.html target='_blank'>block making machine</a>

1. OYF 2-10 is a full-automatic hydraulic brick making machine controlled by PLC, so the machine can be easily operated by only one person.

2. OYF 2-10 uses motor to drive cbt-e316 gear pump with double oil cylinders, and the hydraulic pressure can reach 16MPa, which can ensure high brick density and strong brick quality.

3. The mold can be replaced according to customer requirements.

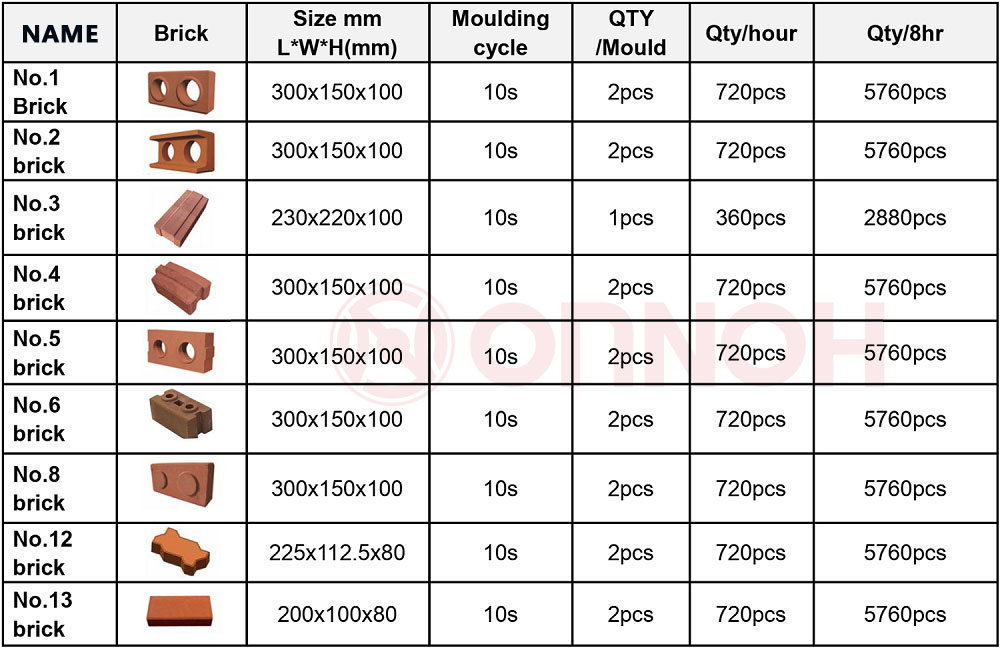

4. High productivity. 5760 bricks every 8 hours

Machine Type	OYF 2-10 interlocking block making machine
Overall size	130018002400 mm
Weight	1800kg
Power	7.5 kw
Voltage	Customizable
Pressure	38 Mpa hydraulic pressure
Shaping cycle	2-10 seconds
Capacity	800~900pcs/hour
Certification	ISO9001:2008,CE
Power source	Diesel/petrol engine/electric motor
Color	Customizable
