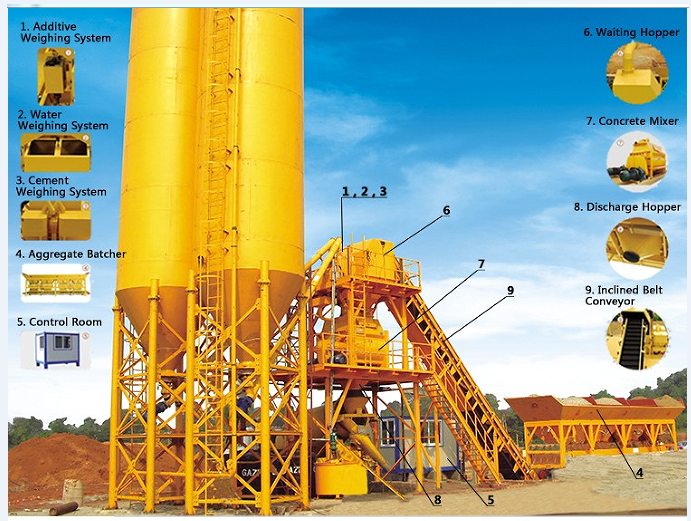

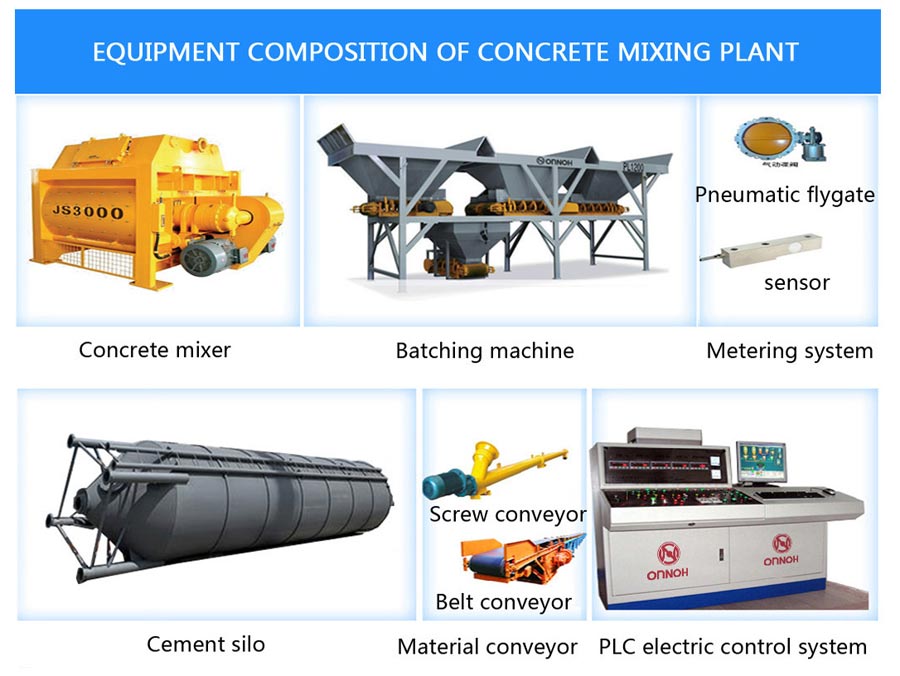

Ready mixing plant concrete mixing plant is composed of the mixing system, weighing system, conveying system, storage system and control system and other ancillary facilities. According to the difference of its configuration, applications and efficacy, etc
Ready mixing plant concrete mixing plant is composed of the mixing system, weighing system, conveying system, storage system and control system and other ancillary facilities. According to the difference of its configuration, applications and efficacy, etc
The feature of technology(Mixing plant)
1.Mixing system
A.Horizontal twin shaft mixer or PLANETARYmixer
B.Italian SICOMA MIXER or JS MIXER made by HXM company
C.Germany BHS,TEKA of mixer etc. It is up to the budget of customer
2.Control system
A. Misubishi PLC. Self diagnosed for trouble shooting
B. Industry computer control plus printer, daily report, monthly report, yearly report
c.International electrical components:Omron, Schneider
D.Monitor system
3.Batching system
A.According to customer’s site. It has Under-ground batcher (concrete structure) and the ground batcher (steel structure)
B. It has Accumulative weighing system and individual weighing system
4.Belt system
A.Trough belt conveyor for the limited land
B.Long belt conveyor for the bigger land
5.Type of concrete mixing plant

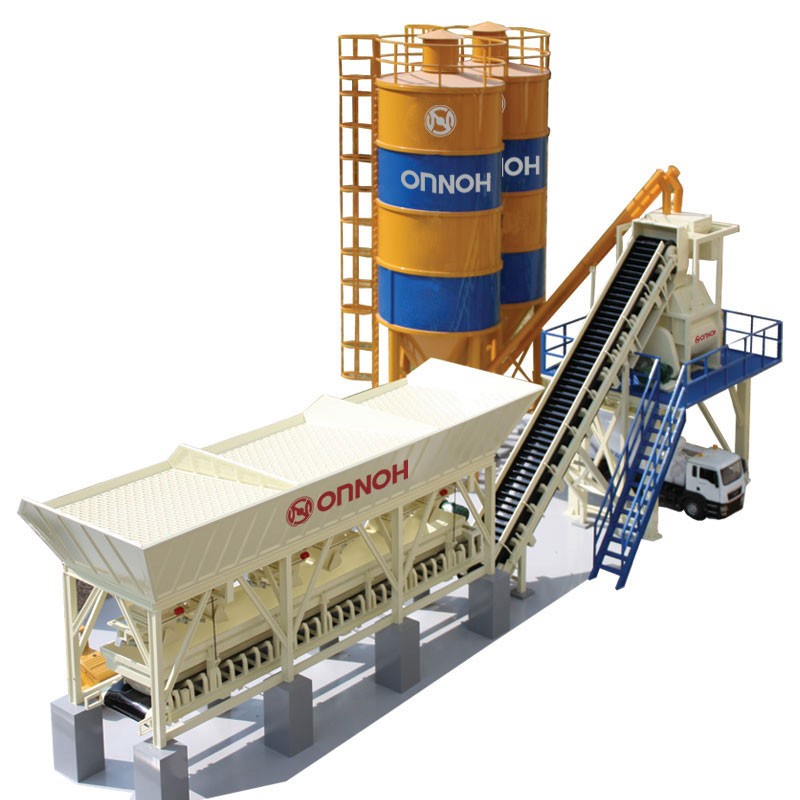

A. Mobile batching plant can move to one place to one place
B.Modular batching plant can be easily tranfered to another place
C. Ready mixed batching plant only for the commercial concrete using
Ready mixing plant technical parameter:
Concrete mixing plant -technical parameters | ||||||

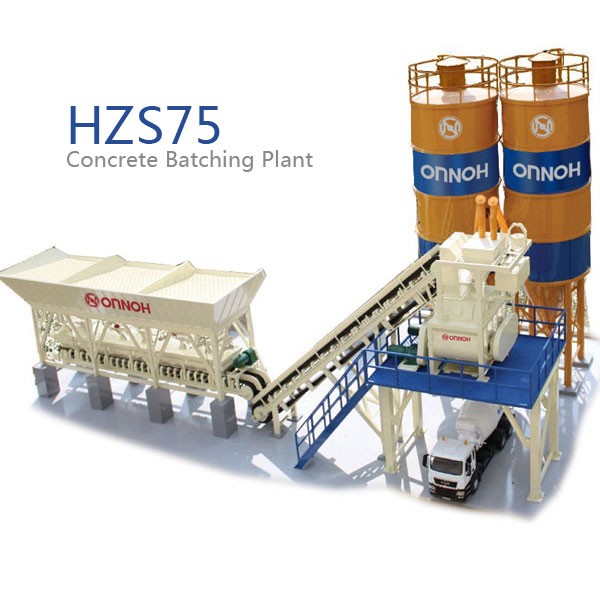

Model | HZS50 | HZS75 | HZS100 | HZS150 | HZS200 | |
Productivity(m³/h) | 50 | 75 | 100 | 150 | 200 | |
Mixer | Model | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 |
Mixing power(KW) | 2*22 | 2*30 | 2*37 | 2*55 | 2*75 | |
Output capacity(m³) | 1 | 1.5 | 2 | 3 | 4 | |
Aggregate size(mm) | ≤60 | ≤80 | ≤120 | ≤150 | ≤150 | |
Aggregate batcher | Hoppers capacity(m³) | 3*9 | 3*13 | 3*13 | 4*20 | 4*20 |
Hopper counts | 3 | 3 | 3 | 4 | 4 | |
Capacity of belt conveyor(t/h) | 200 | 300 | 400 | 500 | 600 | |
Weighing scope and precision | Aggregate(kg) | 2500±2% | 3500±2% | 4500±2% | 6500±2% | 9000±2% |
Cement(kg) | 600±1% | 900±1% | 1200±1% | 1800±1% | 2400±1% | |
Coal ash(kg) | 200±1% | 300±1% | 400±1% | 600±1% | 800±1% | |
Water(kg) | 300±1% | 400±1% | 600±1% | 800±1% | 1000±1% | |
Additive(kg) | 10±1% | 30±1% | 30±1% | 50±1% | 50±1% | |
Total power(kw) | 80 | 108 | 126 | 175 | 220 | |
Discharging height(m) | 3.8 | 3.8 | 3.8 | 3.8 | 3.8 | |

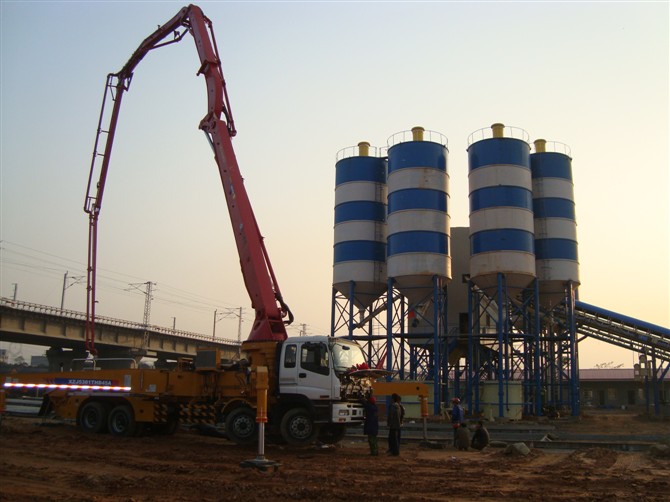

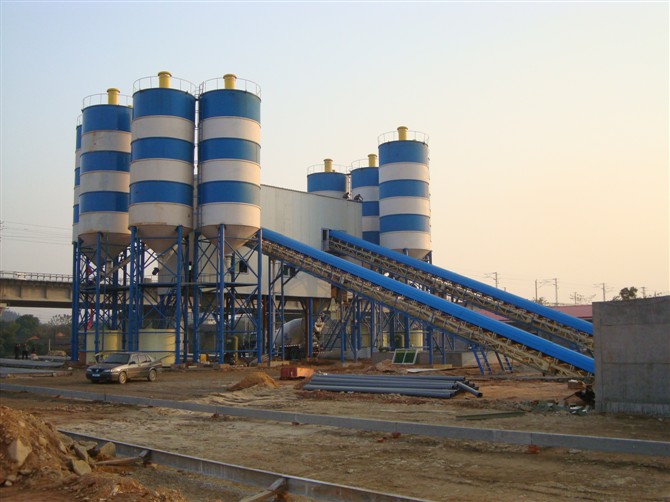

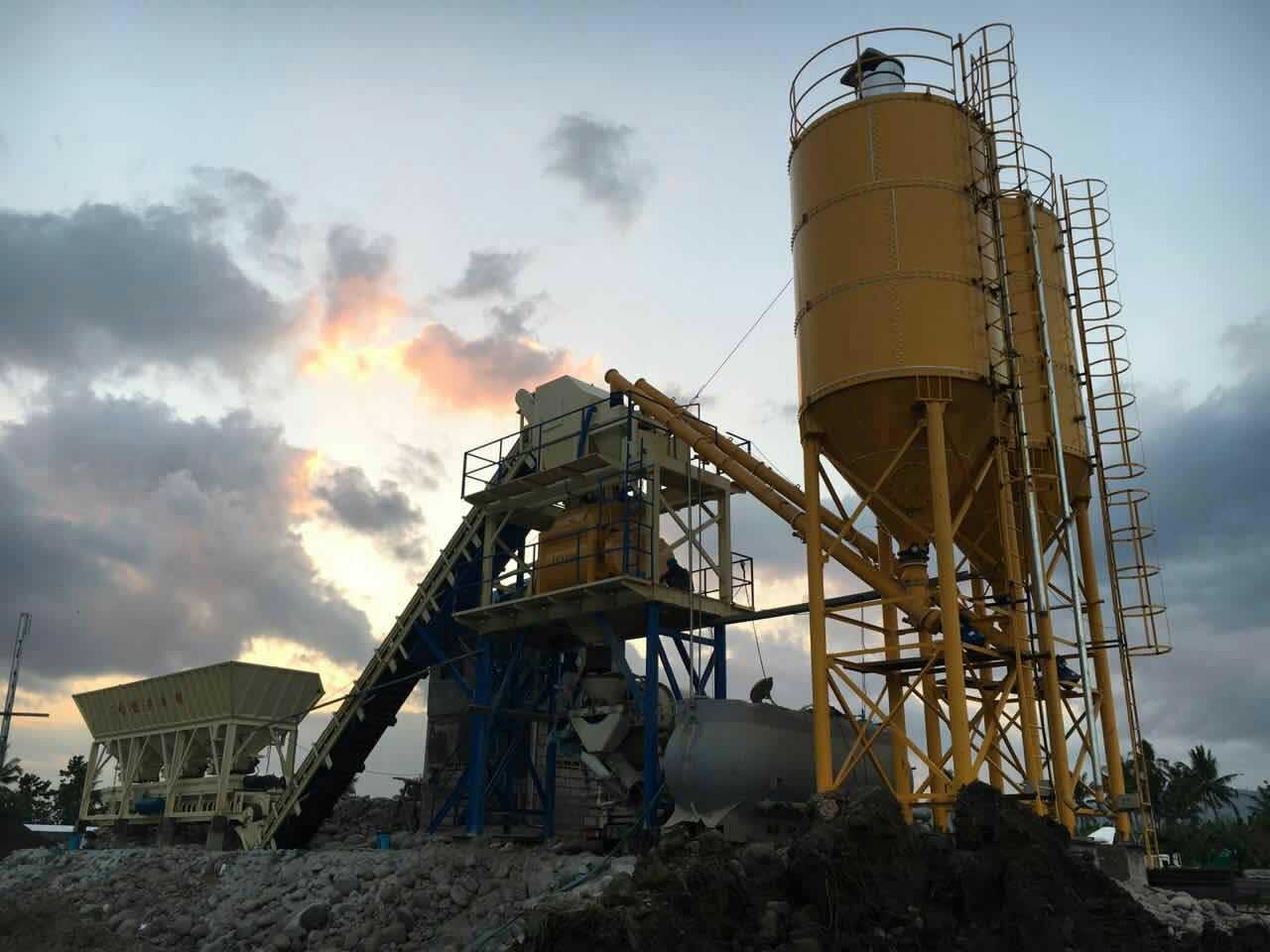

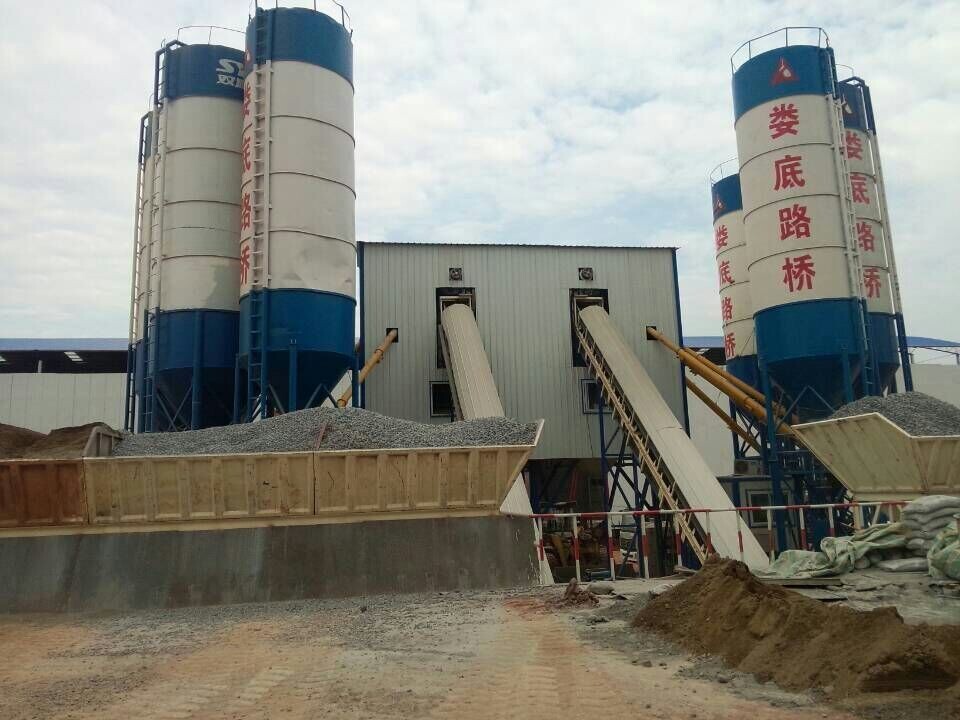

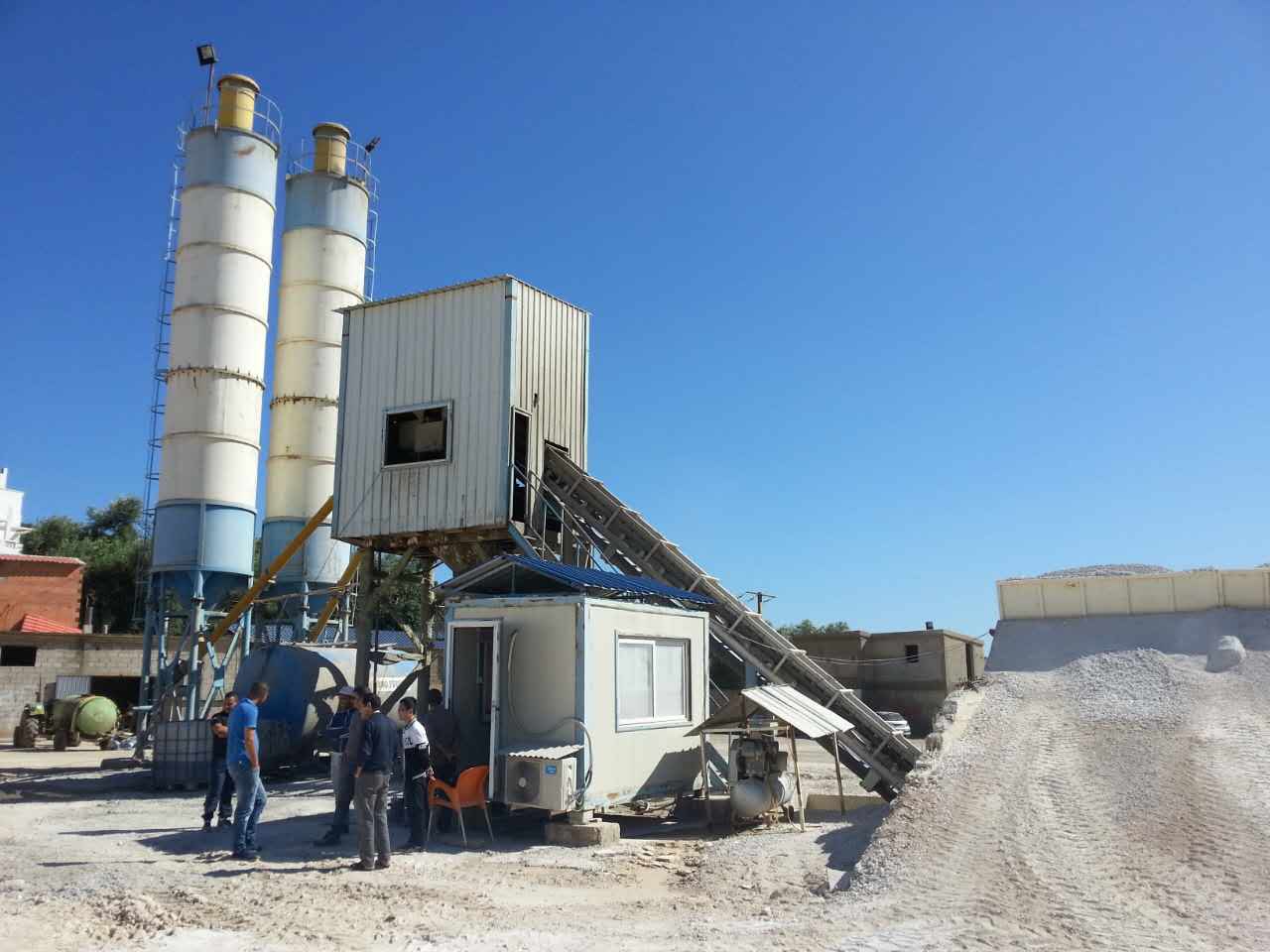

Client case:
Contact: Kaner
Phone: +86 15394434019
E-mail: info@onnoh.com
Add: Dongmen Industrial District,Fengzhou Town,Quanzhou ,Fujian .CHINA
