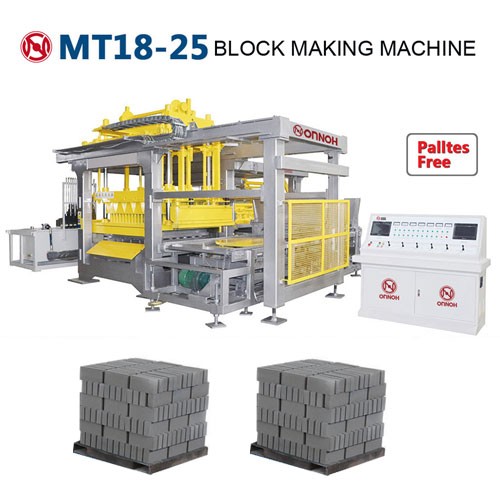

MT18-25 pallets free block making machine

MT18-25 pallets free block making machine is no need for pallets and brick machines without pallets. Palletizing now saves the time and cost of pallets, loading and unloading.

WhatsApp:8615394434019

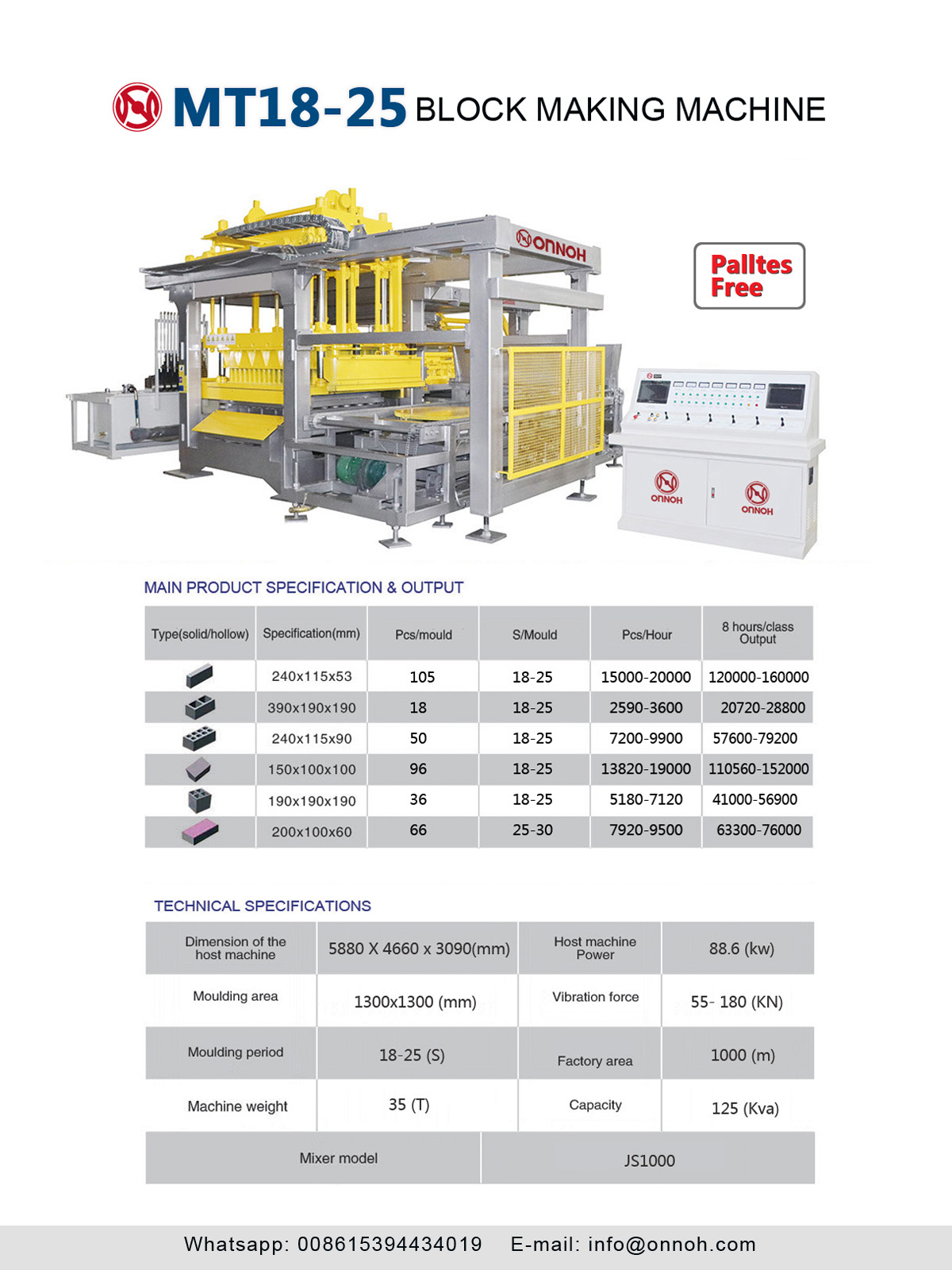

MT18-25 pallet free brick machine main specification:

Host size (mm)	5880×4660×3090	Vibration table	Variable frequency motor vibration
Forming area (mm)	1300×1300	Control system	hydraulic control
Forming cycle (s)	18-25 (Brick type (difference)	Hydraulic system	Encoder servo hydraulic control
Pallet size (mm)	1350×1350×120	Host power (kw)	88.6
Overall weight (T)	35	Exciting force (KN)	55-180
Plant area (m) ²)	1000	Installed capacity (kVA)	125

Item	Specification(mm)	Pcs/mould	Pcs/8Hour
Hollow block	390 x 190 x 190	18	30600-36000
Solid brick	240 x 115 x 51	105	176400-201600
Holland brick	200 x 100 x 90	50	90000-100000

Main features of MT18-25 pallet free brick machine:

1. There is no need for pallets and brick machines without pallets. Palletizing now saves the time and cost of pallets, loading and unloading.

2. Rapid pressurization and high degree of automation.

3. The hopper car adopts the design of double speed reduction motor, and rotates to mix the cloth quantitatively at the same time. The cloth speed is fast and uniform.

4. The feeder car cloth and brick clamping air bag are synchronously driven to realize the flexible clamping and rapid movement of product air bag without supporting plate.

5. The compactness of the product is higher and more uniform.

6. Reduce the friction coefficient of products under high pressure.

7. The equipment operates more stably. At present, the pallet free brick machine produced by Liu's brick machine belongs to the third generation, which uses servo motor to move the mold, lifting table and decoder.

8. The pallet free brick machine is independently developed by Quanzhou Liushi brick machine and has applied for a number of invention patents. It is a leader in Quanzhou brick machine industry and has a very high market share.

9. In order to meet the needs of the majority of users to pack the sold bricks, the factory also specially developed a special brick receiving line for pallet free brick machine; It can realize the effect of folding and stacking the brick stack formed by the pallet free brick machine, and reserve the hole position of forklift; At the same time, it can also be used perfectly with the automatic packer to give full play to the greater equipment advantages of the pallet free brick machine.
