Qunfeng QFT10-15 block making machine production line workflow

Mixing system:

After the mixer is in place, the lifting bucket rises and sends the raw materials into the mixing bucket, mixes well within the set time, starts stirring and feeding, and sends the raw materials into the small storage hopper of the molding machine, waiting for the next cycle of ingredients;

block forming machine:

There are pallets in the pallet box of the molding machine, the mold box falls on the pallet, the belt conveyor works, feeds the material into the storage hopper, the pressure head rises in place, and after all conditions are in place (interlock protection), the hopper advances to the top of the mold box , The computer can be set according to different products and different materials: forced feeding time, vibration feeding time, feeding time after vibrating feeding, you can choose whether to add fabric or not, and when making decorative tiles, you can choose 3~5mm after adding fabric or adding fabric after a little vibration… …. According to the needs of different materials and different products, the mechanical actions can be arbitrarily spliced to realize man-machine dialogue, and one machine can be used for multiple purposes.

intelligent control:

Affected by the dry humidity of the material and the change of the aggregate, the materials after mixing are different. On the premise of ensuring the quality of the product, the PLC control system can set the best molding parameters of the product at any time. In order to meet the needs of different products and materials, real-time dynamic display of mechanical action, fault self-check, display of input/output fault location and other functions.

Brick delivery machine, plate lifter:

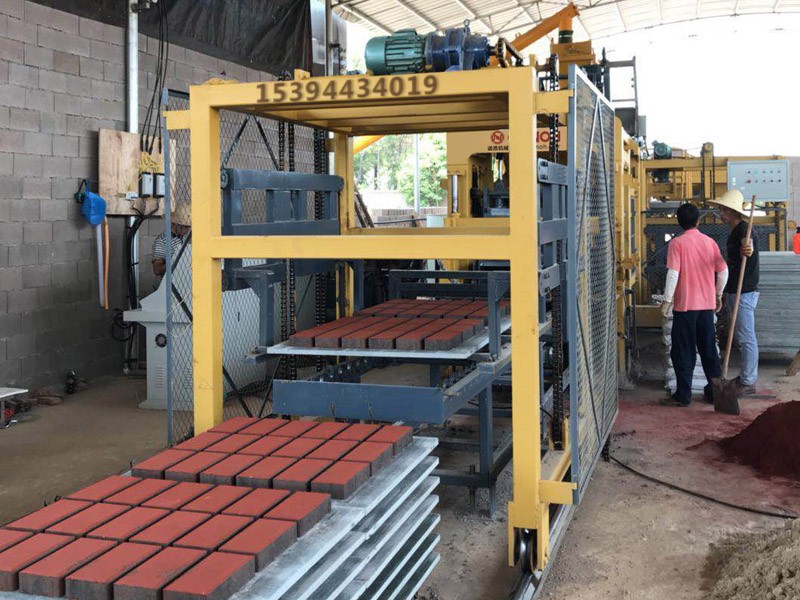

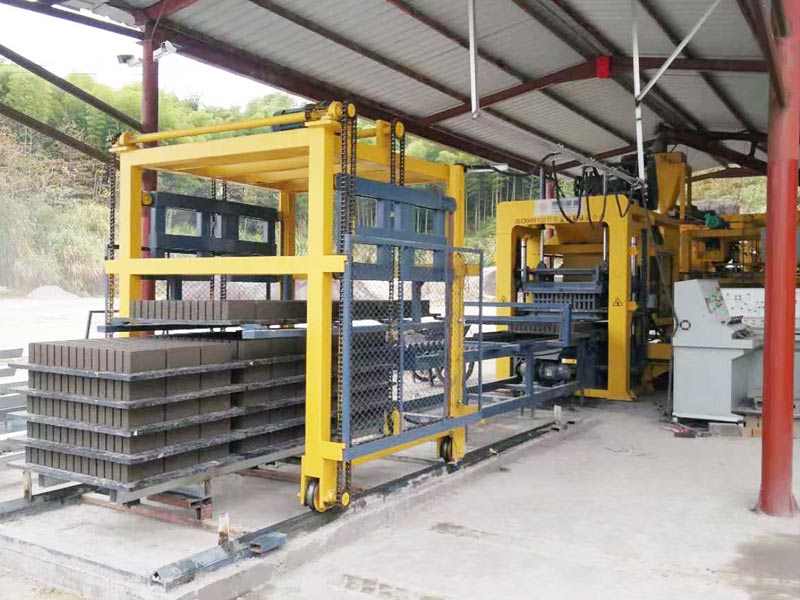

The brick feeder sends the products out of the forming machine, and after being cleaned by the brick surface cleaner, the products are sent to the plate lifter. The pallet lifter is equipped with a pallet rack that is threaded and combined with a chain. After the brick feeder sends a slab of bricks in place, the pallet rack takes the product up by 20cm, and when it is full, the pallet delivery truck brings the product to the maintenance site for stacking.
