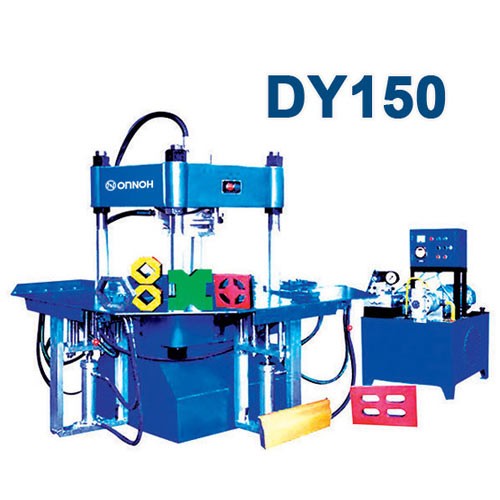

DY150 manunal hydraulic press brick machine

150 ton semi-automatic hydraulic making machine, the main frame structure of plate, solid, durable, high pressure, and adopts hydraulic cylinder push and pull mold, mold positioning accurately, whole machine high degree of automation, stable performance, density of pressed products, angular, high compressive strength, bending strength, suitable for all kinds of special shape, large size, high intensity, lu yanshi and fabrication, etc.

WhatsApp:8615394434019

ONNOH 150 ton Manual hydraulic brick machine is based on hydraulic, forming fast, energy saving, product structure uniform strength, no pollution, low noise, no need to irrigate the foundation, less investment, quick effect, suitable for the production of color road bricks, road side bricks, etc. (the maximum molding specification 500 x 500mm). It is an environmental protection and economic hydraulic brick making machine for profit of the country and people.

Technical parameter
Max moulding specification	450x 450x 180mm
Max working pressure	1500kn
max working operation of piston	150mm
Die height	140-440mm
Max deflection distance between columns	650mm
piston rod down speed (loading)	500mm/min
piston speed up speed (unloading)	2250mm/min
Total power	7.7kw
Rated pressure	25mpa
Host machine weight	2.35t
Host machine dimension	850x 850 x 2000(mm)
The mentioned above offered by Hengxing Machinery, pls subject to the products.
