Concrete batching plant

This batching plant hopper Qty.is up to client required, we can make different capacity as client demand,and which can load sand,stone powder and etc,also can weigh automaticlly and controlled by PLC

Whatsapp.:+8615394434019

Concrete Batching Plant batcher:

This batching plant hopper Qty.is up to client required, we can make different capacity as client demand,and which can load sand,stone powder and etc,also can weigh automaticlly and controlled by PLC

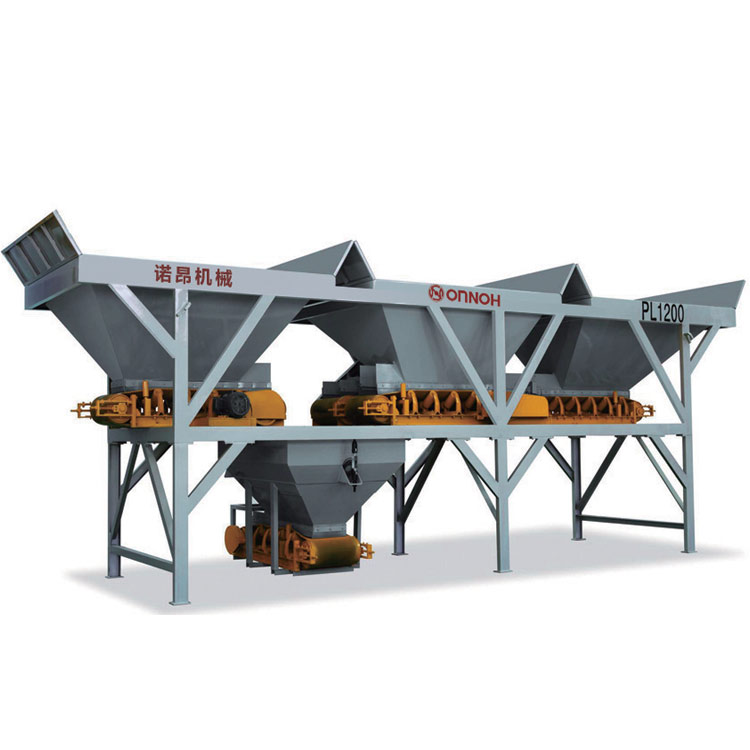

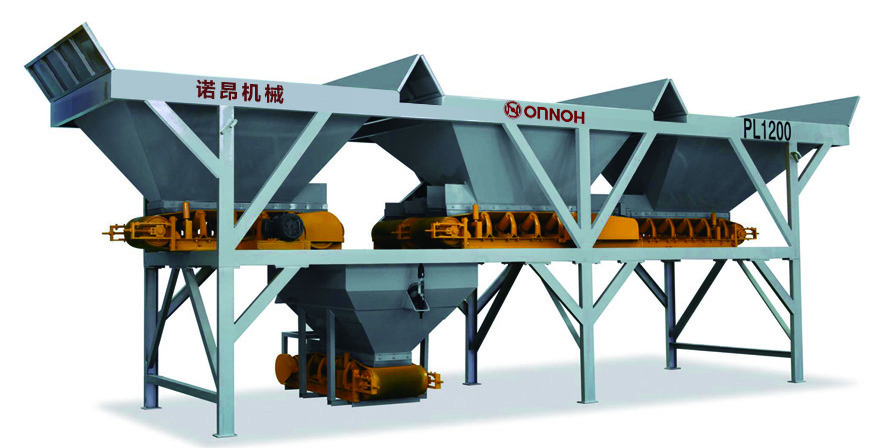

PLD1200 BATCHING MACHINE:

ITEM	parameter
Scale hopper volume	1.2m³
Hopper Volume	2.5m³x3
capacity	≥60m³/h
Batching	±1%
Max Batching capacity	2000kg
Aggregate Batching kinds	3 kinds
Height for loading	3000mm
Speed of conveyor	1m/s
Power	4x3kW
Size（LxWxH)	9000×2250×3500mm
Weight	4500kg

PLD1600 BATCHING MACHINE:

ITEM	parameter
Scale hopper volume	1.6m³
Hopper Volume	3.7m³x3
capacity	≥80m³/h
Batching	±2%
Max Batching capacity	3000kg
Aggregate Batching kinds	3 kinds
Height for loading	3000mm
Speed of conveyor	1.25m/s
Power	17.5kW
Size（LxWxH)	9500x2500x3600mm
Weight	5600kg
