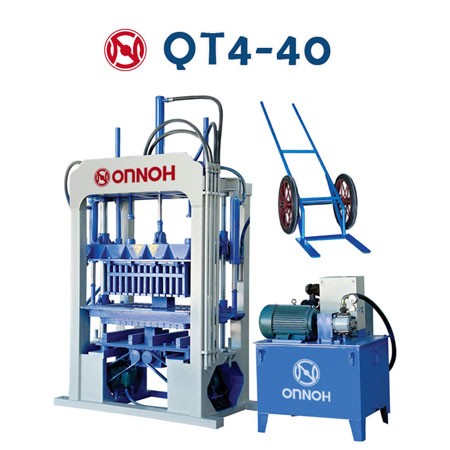

QT4-40 hollow block making machine is the most popular cement brick machine in South Africa, which meets the national standard of China. A 15 HP diesel engine hydraulic station is installed for the forming host, which has excellent performance, high efficiency and low energy consumption.
QT4-40 manual hollow block machine is the reformed machine with reasonable design, favorable property, and super-strong vibration motor.
And it manufactures bricks with good quality, large density, and high strength. This machine adopts top die push and pull and automatic scraper, which is simple to operate as well as the large-scale equipment.
QT4-40 manual hollow block machineMain Technical Parameters
cycle time | 40-45s | virbation type | hydraulic virbation |
motor frequency | 50HZ | total power | 15.5KW |
pallet size | 850*560*20MM | gross weight | 1500KG |
rated pressure | 8.5MPA | machine size | 4500*1600*2200MM |
QT4-40 manual hollow block machine Brick Output
Item | Size | Output per cycle | Output 8 per hour |
Hollow block | 390*190*190mm | 4 pcs | 1400-2000 pcs |
Porous block | 240*115*90mm | 12 pcs | 4200-6000 pcs |
Solid brick | 240*115*53mm | 26 pcs | 9100-13000 pcs |
Interlock brick | 200*160*60mm | 8 pcs | 3500-4500 pcs |
Advantages of QT4-40 manual hollow block machine:
1. Hydraulic model, good block quality.
2. Diesel power, no power required
3. To produce different hollow blocks and solid blocks, you only need to change the mold on the same machine. Very simple, low cost and high profit.
