hydraulic tubing

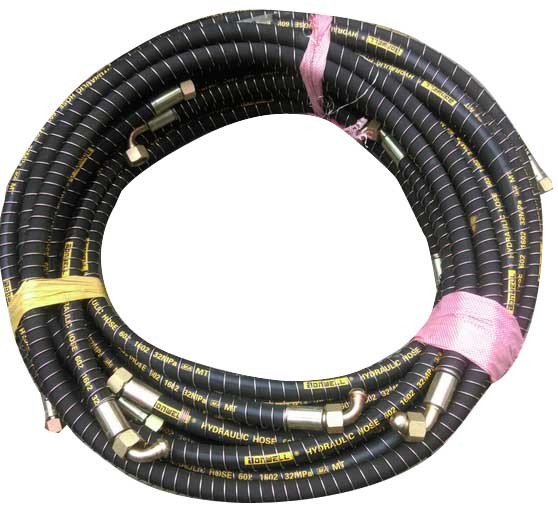

The steel wire braided rubber structure is composed of liquid resistant synthetic rubber inner rubber layer, middle rubber layer, I or guard layer steel wire braided reinforcement layer, and synthetic poplar rubber outer rubber layer with excellent weather resistance.

2、 Product purpose:

Steel wire reinforced hydraulic rubber hose is mainly used for cement brick machine, mine hydraulic support and oil field exploitation. It is suitable for engineering construction, lifting and transportation, metallurgical forging, mining equipment, ships, injection molding machinery, agricultural machinery and various machine tools

As well as the transportation of petroleum based (such as mineral oil, soluble oil, hydraulic oil, fuel oil and lubricating oil) liquid and water-based liquid (such as milk) with constant pressure and temperature in the mechanized and automatic hydraulic system of various industrial departments

Chemical liquid, oil-water emulsion (water), gas, etc. and liquid transmission.

Note; The steel wire braided rubber hose of the enterprise is designed and manufactured according to GB / t3683-1992 standard, and can be manufactured according to ISO / dis1436-1985, din20022, sae100riat and sae100r2at standards

Rubber hose, this standard is not suitable for hemp oil-based and fat based liquids

3、 Operating temperature: Oil - 40C - + 100C, air - 30 ° C - + 50c, water emulsion wave below + 80 "C, please select the special crystal produced by our factory

4、 Product features:

1. The rubber club is made of special synthetic rubber, which has excellent oil resistance, heat resistance and aging resistance,

2: The rubber hose has high bearing pressure and excellent pulse performance.

3. The pipe body is tightly combined, soft to use, and small deformation under pressure.

4. The hose has excellent bending resistance and fatigue resistance.

5. The length of steel wire braided hose is large, φ The fixed length above 32 is 20m, φ It can reach ten meters or even more than 100 meters below 25.

IV. product features:

1. The rubber hose is made of special synthetic rubber, which has excellent oil resistance, heat resistance and aging resistance.

2. Rubber hose pressure carrier. Excellent pulse performance.

3. The pipe body is tightly combined, soft to use, and small deformation under pressure,

4. The hose has excellent bending resistance and fatigue resistance.

5. The length of steel wire braided rubber hose is large, with a fixed length of 20m above the middle 32 and up to 10m or even more than 100m below the middle 25.

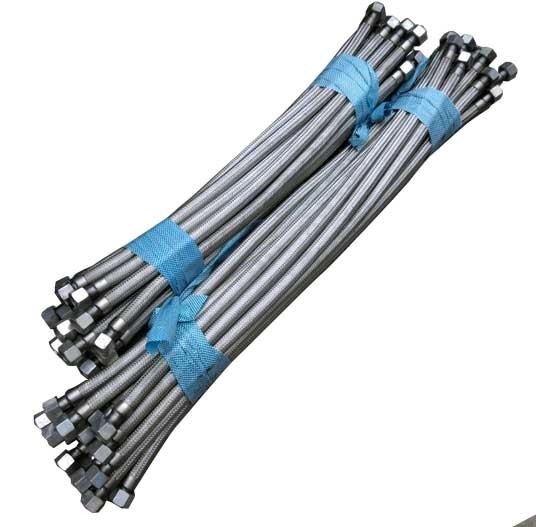

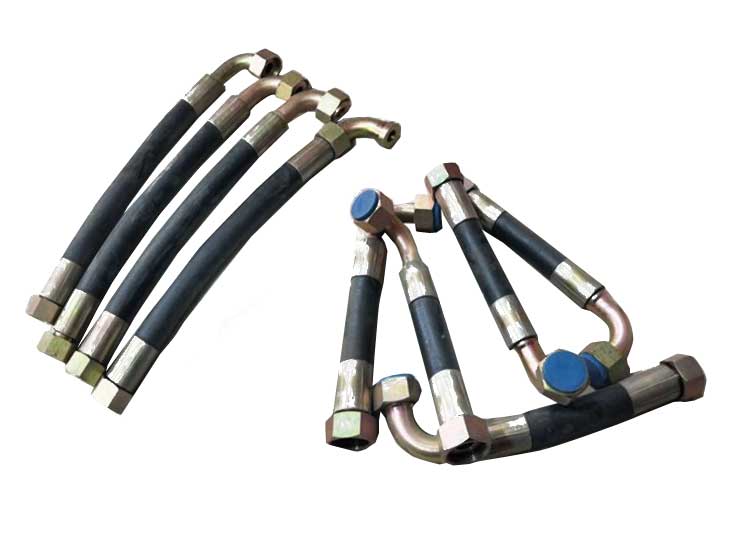

5、 The high-pressure hose assemblies produced by our company are all made of high-quality steel wire braiding glue or steel wire winding glue and rubber joints, which are buckled by special equipment. High quality carbon steel joints and non stainless steel joints can be selected according to the needs of users

Rusty steel joint, steel joint, bidding joint, etc. the joint form and screw grave shall strictly refer to the national standard metric system (jb1891-1900-77), American Standard and British standard, with accurate data, reasonable structure and assembly formula

The utility model has the advantages of convenience, tight fastening, no liquid leakage and head off under high temperature, high pressure and pulse working conditions, high safety factor and long service life, and can design and produce special-shaped joints and connectors according to the needs of users,

Technical parameters of three-layer steel wire braiding adhesive

CB/T3683.1-2006
