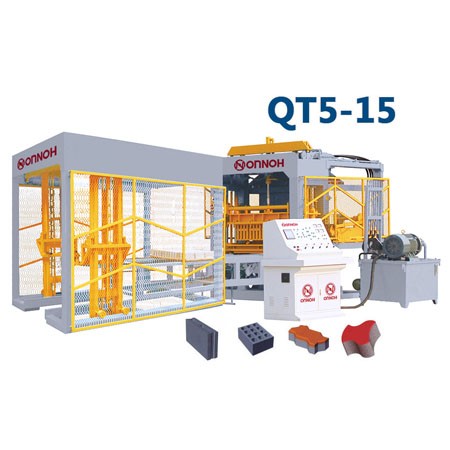

QT5-15 block making machine

Qt5-15 full automatic cement brick machine refers to the mechanical equipment with full-automatic manipulator. The full-automatic cement brick machine uses slag, slag, fly ash, stone powder, sand, stone and cement as raw materials, scientifically proportioning, mixing with water, and pressing cement bricks, hollow blocks or color pavement bricks under high pressure through brick making machinery

WhatsApp:8615394434019

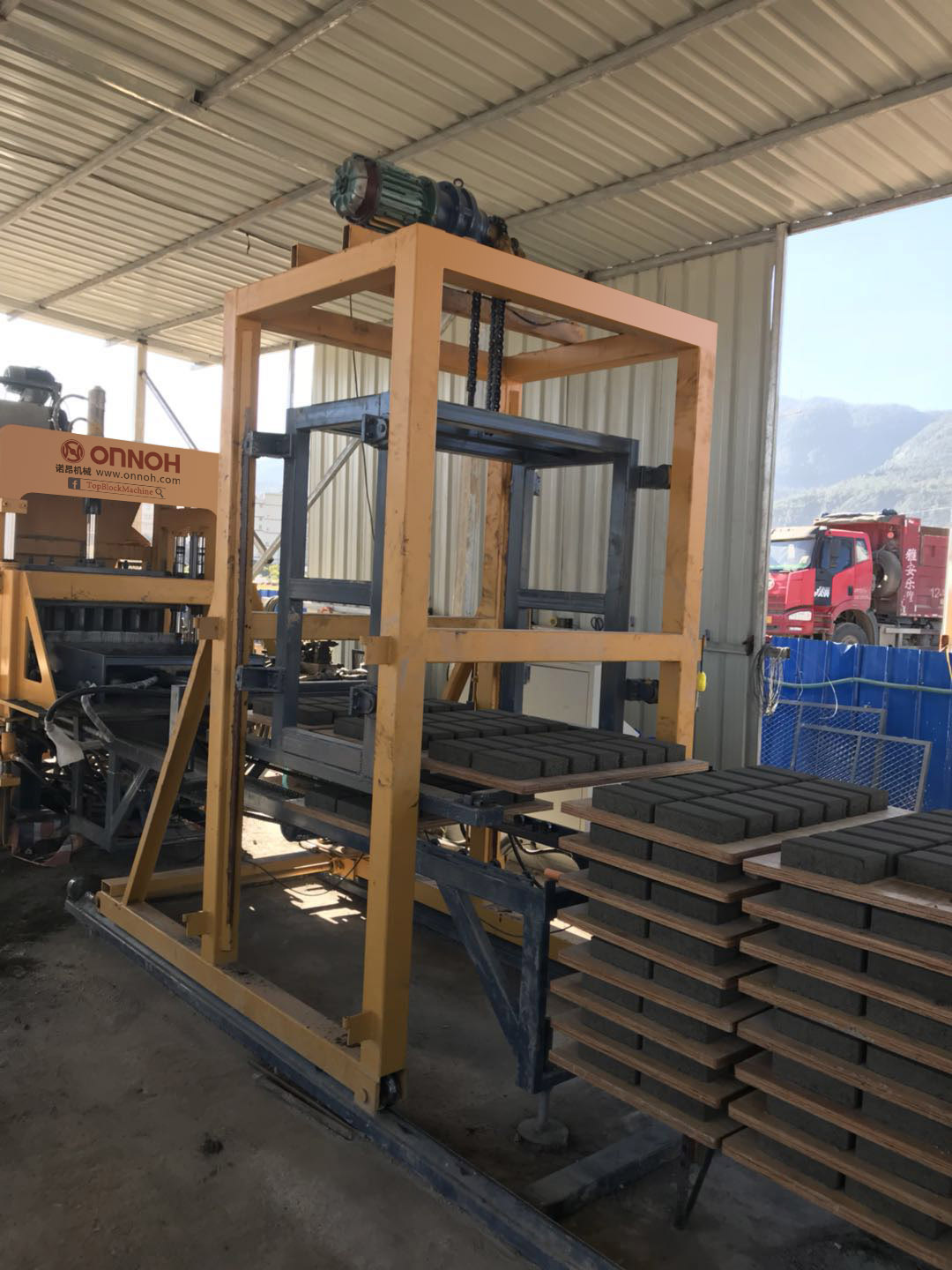

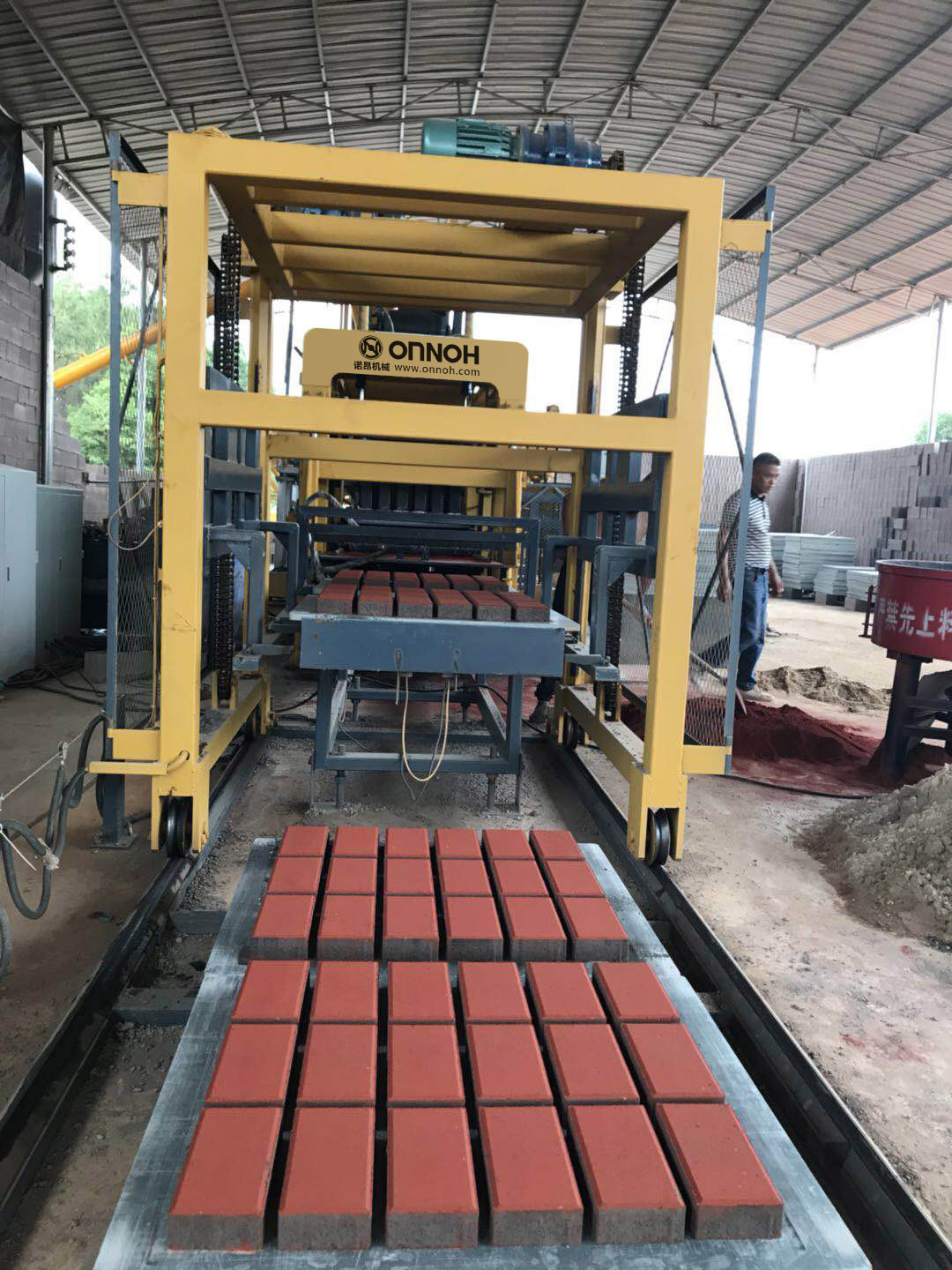

QT5-15 automatic cement brick machine has a high degree of automation. The machine realizes the full automation of distribution, forming, blank discharge, stacking and other processes. The main machine of the cement brick machine has the advantages of reasonable and reliable structure, good rigidity, high fatigue resistance and long service life. The machine adopts four column structure, the upper and lower beams are pre tightened into a closed frame through columns, and the four column guidance has the advantages of compact structure, good rigidity, high precision, reliable and stable operation.

QT5-15 Block machine technical Spec.:

QT5-15 Technical Specifications
Vibration trequency	3800-4500(r/min)
Total weight	10.5(T)
Machine Size	945036002700（mm)
Total power	34.4(kw)
Cycle time	12-20(s)
Rated pressure	25MPa
68Vibration force	68KN
Pallet site	110056025(mm)
Vibration type	Hydraulic vibration
Stacking machine power	3.0KW

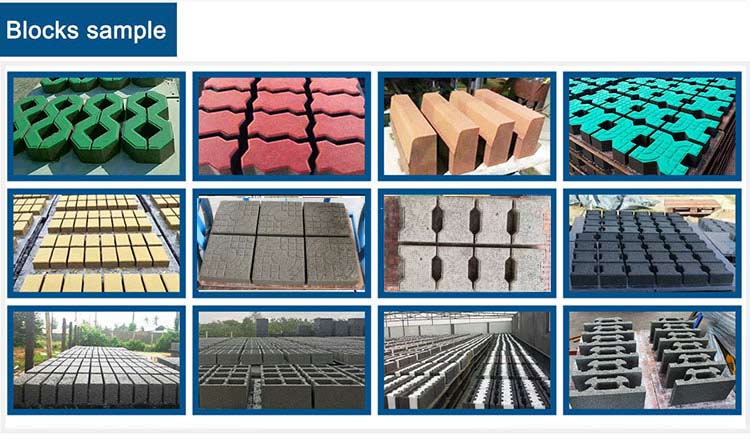

the machine can make different kind blocks by changing moulds, below is common block theory capacity for reference

Item	Specification(mm)	Pcs/mould	Pcs/Hour
Hollow block	390 x 190 x 190	5	900-1200
Solid brick	240 x 115 x 53	32	6000-7500
Porous brick	240 x 115 x 90	15	2700-3600
Holland brick	200 x 100 x 60	20	2880-3600
